Garhauer 2 Speed Mainsheet/Vang

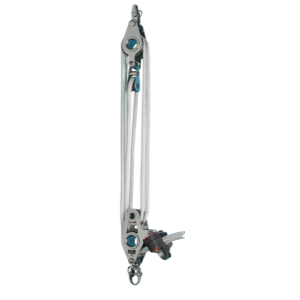

25-2SP 2 speed Main sheet / vang 6-1, 3-1 purchase.
WL 520kg
5mm swivel shackle
Delrin ball bearings
Sheave Diameter 50mm (2") takes line up to 10mm
Product unit weight grams:425 (Ounces: 15)
Nine alloy sheaves with Delrin ball bearings.
Pull both ropes to quickly bring the main sail in and either rope to fine tune.
Use continuous 8-10mm line (joined with a splice or a knot) (rope not included).
30-2SP 2 speed 6-1, 3-1 purchase Mainsheet/Vang.
WL 907kg
Nine alloy sheaves with Delrin ball bearings.
Sheave Diameter 63mm (2 1/2")
Pull both ropes to quickly bring the main sail in or use either rope to fine tune.
Use continuous 8-10mm line (joined with a splice or a knot) (rope not included).
40-2SP 2 speed 6-1, 3-1 purchase Mainsheet/Vang.
WL 1270kg
Nine alloy sheaves with Torlon ball bearings.
Sheave diameter 63mm
Takes line up to 13mm
Pull both ropes to bring the main sail in quickly or fine tune with either rope.
Use continuous 13mm line (joined with a splice or a knot) (rope not included).
How to measure how much line is required:
First, fit the blocks to the traveller and the boom
Add the next three lengths of rope together to determine how much you need.
1. Weave a short piece of rope through the blocks as per how they arrive, this determines the block rope length for your vessel
2. Measure from the Cam Cleats to the shrouds and double this measurement
3. Add another metre for good measure
NOTE: To maintain complete control, use one rope to ease the mainsheet under load, rather than two.
