Garhauer -02 Fiddle Block - D_Shackle Becket

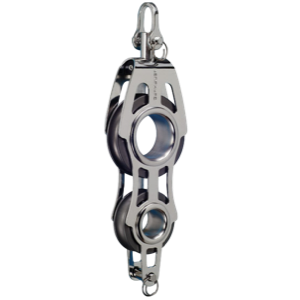

Fiddle Block with Becket and Adjustable D-shackle

25-02US, WL 520kg

5mm adjustable swivel shackle
Delrin ball bearings
Sheave Diameter 50mm (2")
Takes line up to 10mm

30-02US, WL 907kg

6mm adjustable swivel shackle
Delrin ball bearings
Sheave Diameter 63mm (2 1/2")
Takes line up to 12 mm

40-02US, WL 1270kg

8mm adjustable swivel shackle
Torlon ball bearings
Sheave Diameter 63mm (2 1/2")
Takes line up to 12 mm

45-02US, WL 1360kg

10mm adjustable swivel shackle
Torlon ball bearings
Sheave Diameter 110 mm (41/2")
Takes line up to 16 mm

50-02US, WL 1360kg

10mm adjustable swivel shackle
Torlon ball bearings
Sheave Diameter 76mm(3")
Takes line up to 16 mm

70-02US, WL 2267kg

10mm adjustable swivel shackle
Torlon ball bearings
Sheave Diameter 108mm(4 1/4")
Takes line up to 20 mm
