Garhauer -03 Fiddle Blocks - Snap_Shackle

Fiddle Blocks with Snap Shackle and D-Shackle

25-03US, WL 520kg

5mm snap shackle
Delrin ball bearings
Sheave Diameter 50mm (2")
Takes line up to 10mm

30-03US, WL 907kg

With 6mm snap shackle
Sheave Diameter 63mm (2 1/2")
Delrin ball bearings
Takes line up to 13mm

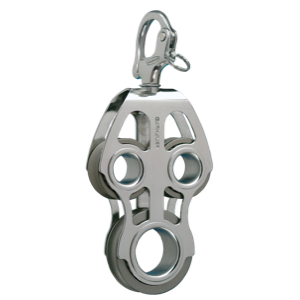

40-03US, WL 1270kg

8mm snap shackle
Torlon ball bearings
Sheave Diameter 63mm (2 1/2")
Takes line up to 12 mm

50-03US, WL 1360kg (High Load)

12mm trunnion snap shackle
Torlon ball bearings
Sheave Diameter 76mm(3")
Takes line up to 16 mm
