Garhauer Snatch Blocks -SN
30SN Snatch Block with Trunnion Shackle
WL 907kg
Sheave diameter 49mm
Takes line up to 13mm.
Product unit weight grams: 226

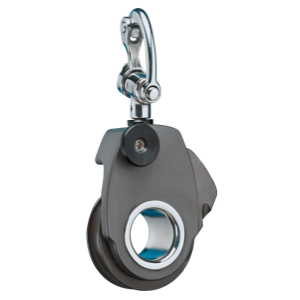

40SN Snatch Block with Trunnion Shackle
WL 1270kg
8mm snap schakle
Torlon Bearings
Sheave diameter 67mm (2 5/8″)
Takes line up to 14mm (9/16″)
Product unit weight grams: 390
60SN Snatch Block with Trunnion Shackle
WL 1590kg
8mm snap shackle
Torlon ball bearings
Sheave Diameter 87mm (3 1/2")
Takes line up to 16mm
Product unit weight grams: 595
Snatch blocks come with a Trunnion snap shackle and have a swivel side plate and pull pin. Trunnion articulation provides correct lead when in restricted situations such as toerail attachment.
